Gauge ThingJoin the waitlist

Gauge Thing

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.

Customizable vehicle gauges.

Display supported RPM, boost and temperatures on a 1.2-inch AMOLED screen. Choose your readings, layout and alerts with the iPhone companion.

No subscription required

Vehicle readings require a supported OBD-II adapter, sold separately. See setup and adapter details

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.

A compact display for vehicle data.

Gauge Thing is a USB-C powered vehicle display with a rotary knob and touchscreen. The app and device start on gauges. Choose your readings, build a custom face, and set warning thresholds in the iPhone companion. A supported OBD-II adapter, purchased separately, supplies the vehicle data. Music controls share the same screen. The vent mount is designed; physical fit and durability testing are still pending.

1.2-inch AMOLED touchscreen
Round display, 390 × 390 pixels with true blacks
One knob
Turn, press, double-press or hold
Startup screen
The app and device open on vehicle gauges
Separate OBD-II adapter
Required for vehicle readings; purchased separately
Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.
Implemented · testing pending

RPM, boost and temperatures.

RPM, calculated boost, coolant, intake, road speed and supported oil temperature. The Modern face puts a large reading inside a bright segmented dial. Choose a primary metric and one optional secondary reading.

Vehicle readings require a supported OBD-II adapter, sold separately. See setup and adapter details

Set up with the iPhone companion. Readings depend on the car; unsupported or stale sensors show dashes. Boost is calculated from manifold and barometric pressure. Values here are samples. Native iPhone and vehicle testing are pending. Support beyond BMW is planned, with non-BMW vehicles entering beta at launch.

What you need for vehicle readings.

Gauge Thing displays the data. An OBD-II adapter reads it from your car. The adapter is a separate purchase and is not included with the device.

Gauge Thing
Your dashboard display, powered over USB-C. Choose the readings and gauge layout you want to see.
A supported OBD-II adapter
Purchased separately and plugged into your car’s OBD-II port. The display alone cannot read engine data.
The iPhone companion
For setup, custom faces and phone features. Targets iOS 17 and later; public app availability is still to be confirmed.

Adapter compatibility

Veepeak OBDCheck BLE

Current development adapter. Final vehicle and adapter validation is ongoing.

This is the adapter the project currently targets. Other models, including similarly named versions, should not be assumed compatible. A generic “ELM327” label alone is not enough.

View adapter on Veepeak’s website (opens in a new tab)

Adapter purchases are made directly with the retailer.

Available readings vary by vehicle. Development currently focuses on a 2011 BMW 335xi; broader vehicle support is planned for beta. Direct gauge-to-adapter readings are implemented, with physical connection and reconnect testing still ongoing. Check vehicle and phone requirements

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.

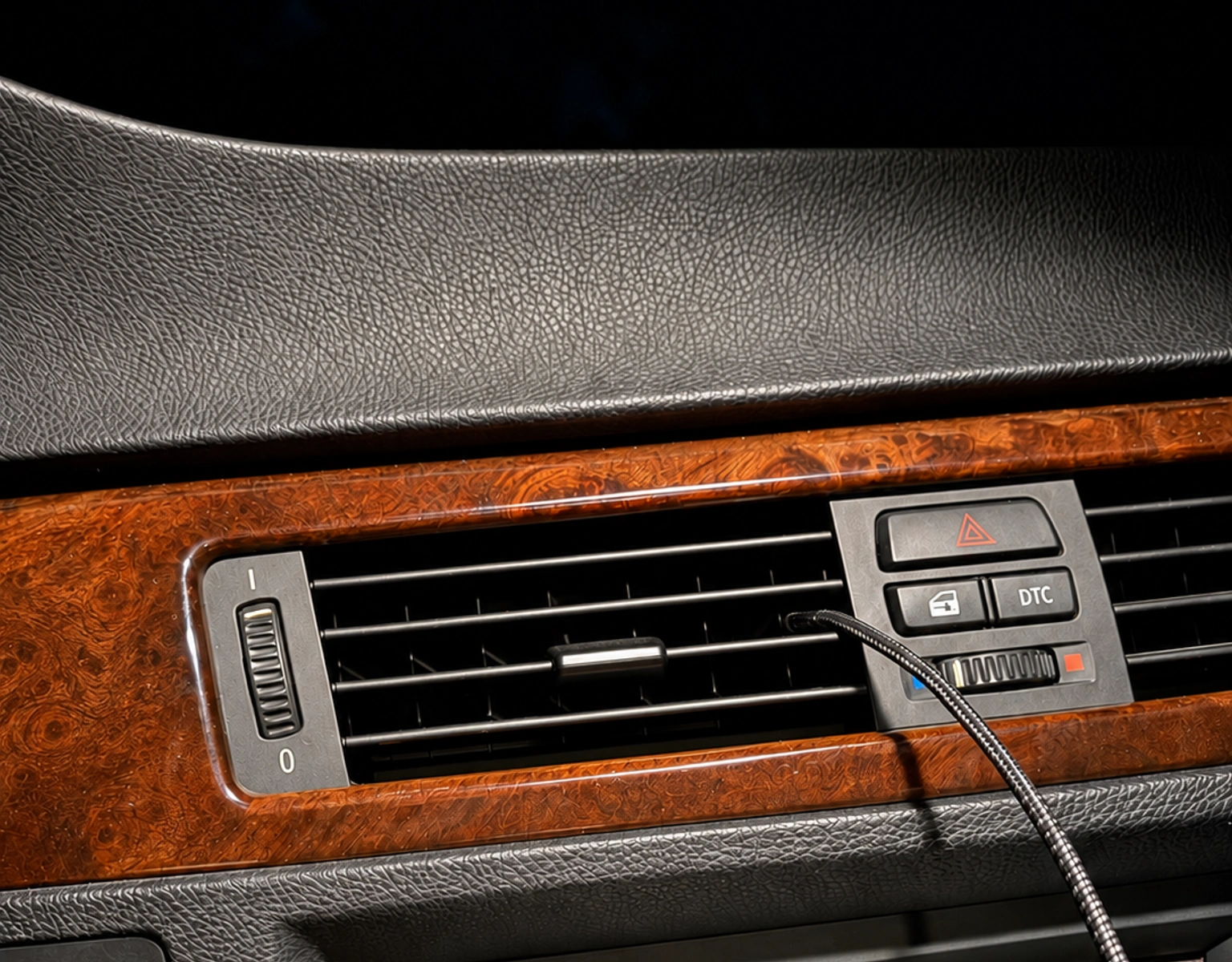

Vent mount and adjustable brightness.

The prototype mounts to an air vent. Four brightness levels adjust the display for daylight or a dark cabin, and black areas of the AMOLED screen switch their pixels off.

Live product model over an enhanced, retouched photo of the prototype's interior. The screen is a live demo: tap it or drag the ring. Mount design completed; physical fit and durability testing pending.

USB-C power and Bluetooth setup.

Power the display over USB-C, plug the adapter into your car’s OBD-II port, and use the iPhone companion for setup. Your stereo and factory wiring stay in place.

Vehicle readings require a supported OBD-II adapter, sold separately. See setup and adapter details

  1. MountImplemented · testing pending

    Vent cradle and adjustable clip designed. Physical fit and durability testing are still in development.

  2. Plug in

    One USB-C cable to the car's USB port or a 12 V adapter. No wiring into the car.

  3. Set up vehicle readings

    Connect Gauge Thing in the iPhone companion. Plug your separately purchased supported OBD-II adapter into the car, then select it in Devices and start monitoring from Gauges.

  4. Choose your gauges

    Choose a primary reading and an optional secondary metric, or send a custom face from the designer. Only readings supplied by your vehicle can be displayed.

  5. Add music controls

    Double-press the knob to open Music, then pair in iPhone Bluetooth settings using the passkey on screen. Playback and volume controls work without the companion app.

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.
Implemented · testing pending

An iPhone app for gauges and settings.

Open straight into Gauges. Set up your adapter, choose readings and design a face for your car. Artwork, device settings and optional performance timing are in the same companion.

No account is required. OBD history and performance results stay on the phone by default. Album lookup uses public internet catalogs.

The app targets iOS 17 and later. Physical iPhone, vehicle and Bluetooth validation is ongoing; there is no App Store release yet.

Custom gauge faces
Arrange readings, dials, bars, labels and artwork in the face designer. Save your layouts and send them to Gauge Thing over Bluetooth. Live readings still need a supported OBD-II adapter, purchased separately.
Parked and Drive
Save and activate profiles with your preferred gauges, units, thresholds and brightness. Drive uses a longer settings hold. Manual brightness disables the automatic schedule.
Scheduled display brightness
Schedule day/night brightness from the companion. Changes apply while the app is awake; the device keeps its last brightness if the phone app is suspended.
Secondary readings and threshold alerts
Keep one secondary metric below the primary gauge. Set high thresholds for a brief ring when crossed. Alerts rearm after the reading falls back below the threshold band.
Trip history and sensor timelines
Real OBD sessions save summaries and sensor timelines locally, with gaps preserved. Performance keeps its own timeslips and speed traces. Demo samples never become recorded trips or runs.
Artwork from your phone
Crop a photo, adjust its dimming and send it over Bluetooth. Automatic album artwork finds exact catalog matches without streaming credentials; missing or ambiguous matches use Graphite.
Wireless firmware installation
Install a trusted staged update from Devices over encrypted Bluetooth, with progress and confirmation after restart. USB updates are also supported.

Backgrounds, photos and accent colors.

Four built-in artworks, your own photo, or automatic album covers. Crop and send photos from the companion over Bluetooth, or use the device’s Wi-Fi setup page without internet.

Automatic album artwork uses the companion and internet catalogs, with Graphite when no exact match is found. It needs no streaming-account login. Locked-phone updates are best effort.

Seven accents, adjustable dimming and four on-device brightness levels. Companion profiles also support scheduled day/night brightness while the app is awake.

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.

Seven accent colors

  • Green
  • Teal
  • Blue
  • Purple
  • Orange
  • Pink
  • White
Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.
Sample result from the firmware renderer, not a measured run.
Implemented · testing pending

Optional acceleration and quarter-mile timing.

Record 0–60 mph, 0–100 km/h and quarter-mile estimates using your iPhone’s GPS. Keep a saved result and speed trace to review after the run.

GPS timing works without an OBD adapter. Connect an adapter to add supported RPM, boost and temperature readings to the recording. The gauge can show a temporary GPS timer, then return to your vehicle readings or music.

Results are estimates; timing accuracy is still being validated. Keep Performance open in the foreground: locking or backgrounding the phone interrupts an unfinished run. Set up while parked and use a closed course.

See the current testing status

Volume and playback controls.

Double-press to switch from gauges to music. Turn the knob for volume, press to play or pause, or tap the screen to skip tracks. Music controls work without the companion app.

Try it on the device: tap the screen, drag the ring to turn it, press it to pause, or hold it for settings. Double-press to switch between music and vehicle gauges.

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.

Track information and playback buttons.

The music screen shows the track title, artist, playback time and volume. Artwork is dimmed behind the text, with previous, play and next buttons below.

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.
  • Source appThe app that's playing
  • Track titleScrolls when it's too long to fit
  • ArtistOn its own line, always readable
  • Previous and nextLarge touch targets
  • SettingsTap here or hold the knob
  • ProgressElapsed and total time
  • Volume ringFollows your phone's volume

Device and companion app

No subscription required.

Your gauges.
No monthly plan.

Customizable vehicle gauges, music controls and optional performance timing. Use Gauge Thing and its companion without a monthly or annual plan.

Vehicle readings require a supported OBD-II adapter, sold separately. See setup and adapter details

Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.

AMOLED screen, rotary ring and USB-C.

A 390 × 390 touchscreen surrounded by a rotary ring, powered through USB-C. The 3D model shows the working prototype; the production enclosure is still being finalized and the mount awaits physical testing.

Rotary ring
Turns around the screen and presses in. Easy to find by feel.
1.2-inch AMOLED touchscreen
Round display, 390 × 390 pixels. Pixels switch fully off for black, so there's no grey glow at night.
USB-C power
One cable powers the working prototype, without wiring into the stereo.
Vent mountImplemented · testing pending
Cradle and adjustable clip designed. Physical retention, heat and durability checks remain in development.

Removable mount and physical controls.

  • Removable installation

    The vent mount and USB-C cable can be removed without cutting trim, drilling or rewiring the stereo.

  • Rotary and touch controls

    Turn the ring for volume, press for playback, double-press to switch screens, or hold to open settings.

  • Display brightness

    Black AMOLED pixels switch off. Adjust brightness and artwork dimming on the device, or schedule day/night brightness in the companion.

Vehicle and iPhone compatibility.

Vehicle readings require a supported OBD-II adapter, purchased separately. Use the iPhone companion for setup. Available sensors depend on the car and adapter.

More vehicles are on the roadmap. Confirmed brands and models are still to be determined. Support for non-BMW vehicles is planned to enter beta at launch, with testers helping us find and fix errors.

Does Gauge Thing read vehicle data on its own?
No. Live vehicle readings require a supported OBD-II adapter plugged into your car. The adapter is sold separately and is not included with Gauge Thing. Without it, the display cannot read RPM, boost or engine temperatures.
Which OBD-II adapter should I use?
The current development adapter is the Veepeak OBDCheck BLE. Vehicle and adapter validation is still ongoing. Other models are not confirmed, including similarly named BLE+ versions. Check the final compatibility list before buying for Gauge Thing.
Does it replace my stereo?
Gauge Thing controls your iPhone's media. Audio still plays through your existing stereo, Bluetooth, AUX or other audio connection. The companion can separately read vehicle data through an OBD adapter.
What needs to be connected?
USB-C powers Gauge Thing. A supported OBD-II adapter, purchased separately, plugs into the car's OBD-II port and supplies vehicle data over Bluetooth. Use the iPhone companion for setup. Music pairs with iPhone over Bluetooth without stereo wiring.
Do I need an app?
Use the iPhone companion for adapter setup, custom gauge faces, profiles, history, optional GPS timing, automatic album covers and Bluetooth firmware updates. Direct gauge-to-adapter readings are implemented; operation without the phone and physical reconnect behavior are still being validated. Music controls and Now Playing work without the app. Built-in artwork and Wi-Fi photo setup work on the device.
Which music apps work?
The current firmware uses iPhone's Apple Media Service for metadata and transport, plus Bluetooth media controls for volume. Player support and available metadata vary. The project is designed for music and podcast players such as Apple Music and Spotify; a complete tested compatibility list is still pending.
Which phones are supported?
The companion targets iPhone with iOS 17 and later. Physical iPhone and Bluetooth validation is ongoing, and there is no App Store release yet. Android support is not implemented in this version.
Will vehicles other than BMW be supported?
Support beyond BMW is planned. Development currently focuses on a 2011 BMW 335xi; other vehicles have not been tested yet. The list of confirmed supported brands and models is still to be determined. At launch, support for non-BMW vehicles is planned to enter beta, with compatibility confirmed as testing progresses.
How will vehicle beta testers report errors?
Once the vehicle beta opens, testers will be asked to email us about connection errors, missing readings or incorrect values. Include the vehicle make, model and year, OBD adapter, what happened and how to reproduce it. Reports will help us fix issues and confirm compatibility.
Will every vehicle reading work in my car?
Only supported standard OBD-II readings are shown. Available readings depend on the vehicle and adapter. Oil temperature may be unavailable, and boost requires fresh manifold and barometric pressure. The app reads data without coding the ECU or clearing faults.
Does GPS timing also need an OBD adapter?
No. Optional 0–60 mph, 0–100 km/h and quarter-mile estimates can use the iPhone's GPS without an adapter. An adapter is required to add engine readings such as RPM, boost and temperatures. Phone GPS results are estimates; accuracy validation is ongoing.
Will companion features keep working with the phone locked?
Music works independently of the companion. Phone-based OBD polling and album updates are best effort under iOS; force-quitting stops them. Direct adapter connections are implemented but still need physical reconnect testing. GPS timing requires its screen open in the foreground and interrupts unfinished runs when locked or backgrounded.
Is it available to buy or download?
Gauge Thing remains a pre-launch prototype. Price, release date and weight are unconfirmed. The companion is development source, with no App Store release yet.

Specifications

Current prototype and firmware specifications. Implemented features await native or physical testing. Weight and release availability remain unconfirmed.

Display
Round AMOLED touchscreen, 390 × 390 pixels
Display size
1.2 inches
Control
Rotary knob: turn, press, double-press for Music/Vehicle and hold for Settings
Connection
Bluetooth Low Energy. Music controls work without an app
Phone platform
iPhone; companion targets iOS 17 and later. Physical iPhone validation ongoingImplemented · testing pending
Media
Track, artist, source app, elapsed and total time, play state, phone volume
Media control
Play, pause, next, previous, volume
Artwork
Four Blender backgrounds and Wi-Fi photo setup
Companion photo upload
Crop and send a photo over Bluetooth; keep the app open until savedImplemented · testing pending
Album artwork
Automatic catalog covers through the companion; internet requiredImplemented · testing pending
Appearance
Seven accent colors, four brightness levels, adjustable artwork dimming
Power
USB-C
Power saving
Automatic display sleep and knob wake. Connection and vehicle-power behavior still being validatedImplemented · testing pending
Mounting
Vent cradle and adjustable clip designed; physical fit and durability testing pendingImplemented · testing pending
Vehicle data
RPM, calculated boost, coolant, intake, road speed and supported oil temperature. Supported OBD-II adapter required, sold separately; available readings vary by vehicleImplemented · testing pending
OBD adapter
Veepeak OBDCheck BLE is the current development adapter. Final compatibility validation is ongoing; adapter not includedImplemented · testing pending
Gauge setup
iPhone companion for setup. Direct gauge-to-adapter readings are implemented; physical reconnect and handoff testing continuesImplemented · testing pending
Gauge display
Modern segmented dial; one primary and one optional secondary reading, selectable units and brief threshold alertsImplemented · testing pending
Custom gauge faces
Arrange readings, dials, bars, labels and artwork in the iPhone face designer; save and send layouts to the deviceImplemented · testing pending
Optional timing
0–60 mph, 0–100 km/h and quarter-mile phone GPS estimates; saved results and a temporary gauge timer. Accuracy validation ongoingImplemented · testing pending
Profiles
Parked and Drive; manual or scheduled day/night brightnessImplemented · testing pending
Trip history
Local OBD summaries and sensor timelines; separate GPS performance timeslipsImplemented · testing pending
Firmware updates
Encrypted companion Bluetooth installation; USB updates retainedImplemented · testing pending
Dimensions
43.5 mm wide × 27.5 mm high
Weight
To be confirmed

Where the prototype stands.

The feature set has moved forward. Release readiness still needs testing on the phone, in the car and with the final hardware.

Working prototype
Protocol and host-renderer checks cover the implemented screens.
Implemented, testing pending
Custom faces, companion gauges, direct adapter connections, album artwork, profiles, trip timelines, wireless updates and optional GPS timing have source implementations. Physical iPhone integration, vehicle compatibility, reconnect behavior and GPS accuracy validation remain ongoing.
Hardware and launch
The device measures 43.5 mm wide × 27.5 mm high. USB-C power is present on the prototype. The mount design is complete, with physical fit, retention, heat and durability tests still in development. Weight, price, release date and app availability are unconfirmed.
Interactive demo with sample music and readings. Arrow keys turn the knob. Enter presses it; press twice quickly to switch Music and Vehicle. Hold Enter for two seconds to open settings. Press Tab for screen buttons.

Gauge Thing

Customizable gauges for your car.

Vehicle readings require a supported OBD-II adapter, sold separately. See setup and adapter details

Join for Gauge Thing launch updates by email. Request removal any time.

In development. Sign up for testing progress and release availability.
